Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Leakage current typeA
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
Ambient temperature during operating-25 - 60°C
Additional equipment possibleNo
Frequency50 Hz
Short-circuit breaking capacity (Icw)10kA
Degree of protection (IP)IP20
Rated current25A
Rated voltage400V
Rated insulation voltage Ui500V
Number of poles4
Rated fault current0.03A
Selective protectionNo
Surge current capacity0.25kA
Pollution degree2
Width in number of modular spacings4
Short-time delayed trippingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

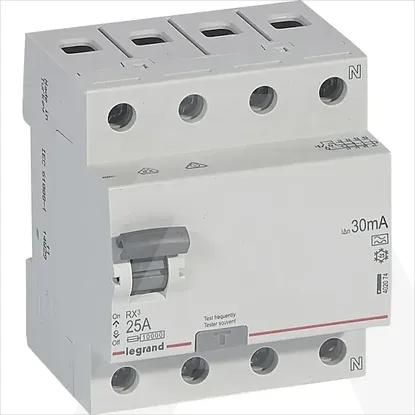

402074 | RX3 FID 25A 4P A 30MA 4M
