Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •10 KOM
  • •LEGRAND

Technical specifications

Voltage typeAC
Built-in depth44mm
Frequency50 - 60Hz
Current limiting class-
Release characteristicD
Rated voltage230V
Rated insulation voltage Ui500V
Width in number of modular spacings1
Over voltage category-
Rated current25A
Pollution degree2
Degree of protection (IP)IP20
Connectable conductor cross section solid-core- - -mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Number of poles (total)1
Concurrently switching neutral conductorNo
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Connectable conductor cross section multi-wired- - -mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

403723 | TX3 AUTOM OSIG 1P D25 6KA

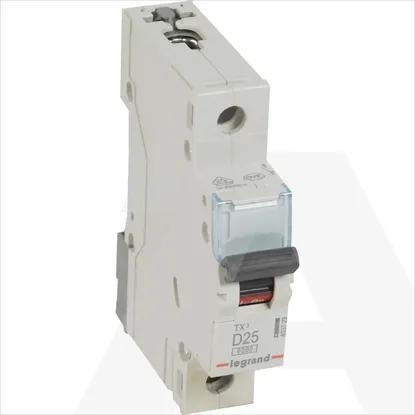

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 10 KOM
  • LEGRAND

Technical specifications

Voltage type

AC

Built-in depth

44mm

Frequency

50 .. 60Hz

Current limiting class

-

Release characteristic

D

Rated voltage

230V

Rated insulation voltage Ui

500V

Width in number of modular spacings

1

Over voltage category

-

Rated current

25A

Pollution degree

2

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

- .. -mm²

Additional equipment possible

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

1

Concurrently switching neutral conductor

Number of protected poles

1

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Suitable for flush-mounted installation

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Ambient temperature during operating

- .. -°C

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Connectable conductor cross section multi-wired

- .. -mm²

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
