Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •5 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated current4A
Release characteristicD
Current limiting class-
Width in number of modular spacings2
Over voltage category-
Rated insulation voltage Ui500V
Degree of protection (IP)IP20
Rated voltage400V
Pollution degree2
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Connectable conductor cross section solid-core- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired- - -mm²
Number of protected poles2
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

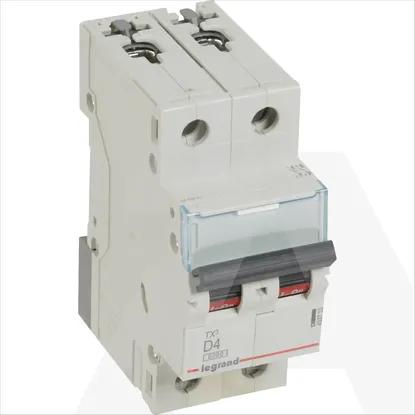

403733 | TX3 AUTOM OSIG 2P D4 6KA
