Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Current limiting class-
Voltage typeAC
Release characteristicD
Built-in depth44mm
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Rated current10A
Rated voltage400V
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired- - -mm²
Pollution degree2
Number of protected poles3
Concurrently switching neutral conductorNo
Over voltage category-
Width in number of modular spacings3
Ambient temperature during operating- - -°C
Connectable conductor cross section solid-core- - -mm²
Suitable for flush-mounted installationYes
Number of poles (total)3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

403753 | TX3 AUTOM OSIG 3P D10 6KA

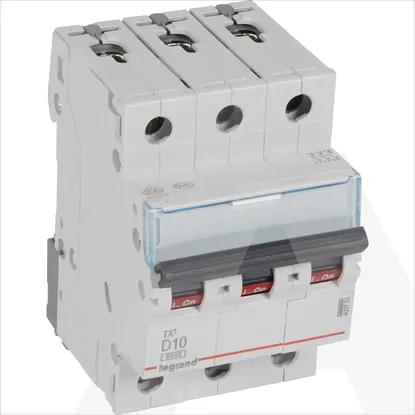

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Current limiting class

-

Voltage type

AC

Release characteristic

D

Built-in depth

44mm

Frequency

50 .. 60Hz

Rated insulation voltage Ui

500V

Rated current

10A

Rated voltage

400V

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

- .. -mm²

Pollution degree

2

Number of protected poles

3

Concurrently switching neutral conductor

Over voltage category

-

Width in number of modular spacings

3

Ambient temperature during operating

- .. -°C

Connectable conductor cross section solid-core

- .. -mm²

Suitable for flush-mounted installation

Number of poles (total)

3

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated impulse withstand voltage Uimp

4kV
