Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •10 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated current6A
Rated voltage230V
Over voltage category-
Current limiting class3
Release characteristicB
Suitable for flush-mounted installationYes
Frequency50 - 60Hz
Built-in depth44mm
Rated insulation voltage Ui500V
Concurrently switching neutral conductorNo
Pollution degree2
Width in number of modular spacings1
Number of protected poles1
Degree of protection (IP)IP20
Connectable conductor cross section solid-core- - -mm²
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)1
Ambient temperature during operating- - -°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

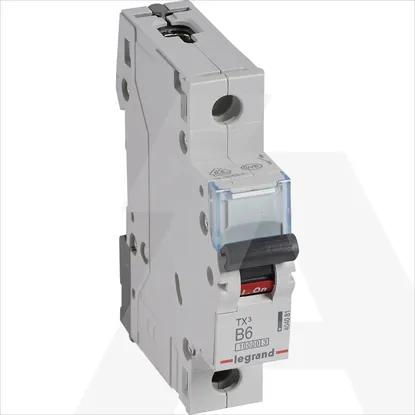

404081 | TX3 AUTOM OSIG 1P B 6A 10KA
