Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •5 KOM
- •LEGRAND
Technical specifications
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Frequency50 - 60Hz
Width in number of modular spacings2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Ambient temperature during operating- - -°C
Rated current1A
Current limiting class3
Over voltage category-
Degree of protection (IP)IP20
Connectable conductor cross section solid-core- - -mm²
Rated insulation voltage Ui500V
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated voltage230V
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Release characteristicB
Voltage typeAC
Concurrently switching neutral conductorYes
Number of protected poles1
Built-in depth44mm
Number of poles (total)2
Pollution degree2
Connectable conductor cross section multi-wired- - -mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

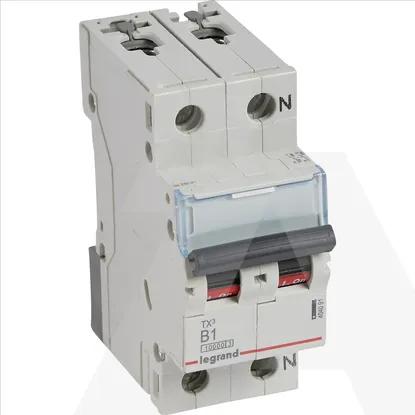

404091 | TX3 AUTOM OSIG 1P+N B1 10KA
