Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •5 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui500V
Built-in depth44mm
Over voltage category-
Voltage typeAC
Pollution degree2
Frequency50 - 60Hz
Current limiting class3
Rated voltage400V
Release characteristicB
Number of protected poles2
Rated current2A
Concurrently switching neutral conductorNo
Width in number of modular spacings2
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Ambient temperature during operating- - -°C
Number of poles (total)2
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

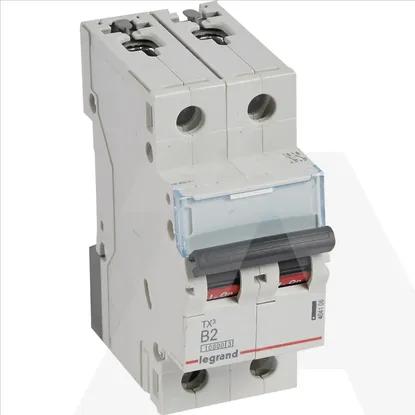

404106 | TX3 AUTOM OSIG 2P B 2A 10KA
