Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •5 KOM
- •LEGRAND
Technical specifications
Release characteristicB
Voltage typeAC
Pollution degree2
Width in number of modular spacings2
Over voltage category-
Rated current32A
Current limiting class3
Frequency50 - 60Hz
Built-in depth44mm
Rated insulation voltage Ui500V
Rated voltage400V
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Number of poles (total)2
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Suitable for flush-mounted installationYes
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Connectable conductor cross section solid-core- - -mm²
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

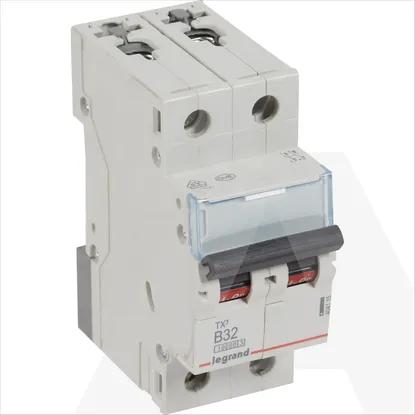

404115 | TX3 AUTOM OSIG 2P B 32A 10KA
