Details

  • •Circuit breakers and fuses

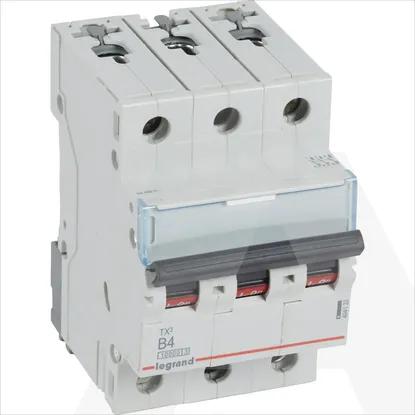

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Voltage typeAC
Built-in depth44mm
Rated voltage400V
Pollution degree2
Frequency50 - 60Hz
Width in number of modular spacings3
Rated insulation voltage Ui500V
Current limiting class3
Degree of protection (IP)IP20
Over voltage category-
Suitable for flush-mounted installationYes
Number of protected poles3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core- - -mm²
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Connectable conductor cross section multi-wired- - -mm²
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated current4A
Release characteristicB
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
