Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated current32A
Voltage typeAC
Built-in depth44mm
Frequency50 - 60Hz
Pollution degree2
Over voltage category-
Rated voltage400V
Width in number of modular spacings4
Current limiting class3
Release characteristicB
Rated insulation voltage Ui500V
Number of poles (total)4
Connectable conductor cross section solid-core- - -mm²
Suitable for flush-mounted installationYes
Additional equipment possibleYes
Number of protected poles3
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Connectable conductor cross section multi-wired- - -mm²
Ambient temperature during operating- - -°C
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

404143 | TX3 AUTOM OSIG 3P+N B32 10KA

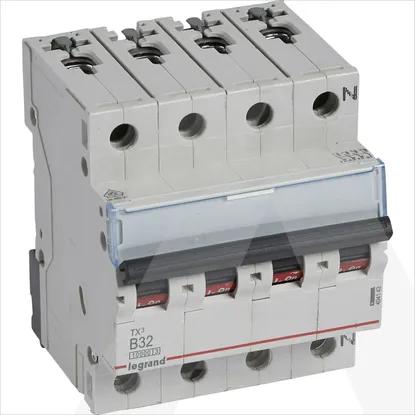

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Rated current

32A

Voltage type

AC

Built-in depth

44mm

Frequency

50 .. 60Hz

Pollution degree

2

Over voltage category

-

Rated voltage

400V

Width in number of modular spacings

4

Current limiting class

3

Release characteristic

B

Rated insulation voltage Ui

500V

Number of poles (total)

4

Connectable conductor cross section solid-core

- .. -mm²

Suitable for flush-mounted installation

Additional equipment possible

Number of protected poles

3

Concurrently switching neutral conductor

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Connectable conductor cross section multi-wired

- .. -mm²

Ambient temperature during operating

- .. -°C

Rated impulse withstand voltage Uimp

4kV
