  • •Circuit breakers and fuses

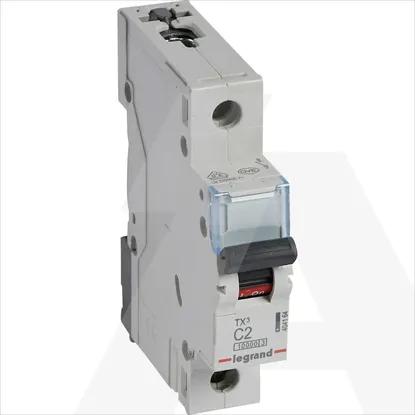

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 10 pcs
  • •LEGRAND

Technical specifications

Built-in depth44mm
Voltage typeAC
Over voltage category-
Current limiting class3
Width in number of modular spacings1
Rated voltage230V
Pollution degree2
Frequency50 - 60Hz
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Additional equipment possibleYes
Connectable conductor cross section multi-wired- - -mm²
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Ambient temperature during operating- - -°C
Concurrently switching neutral conductorNo
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated current2A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
