Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •10 KOM
  • •LEGRAND

Technical specifications

Voltage typeAC
Release characteristicC
Rated voltage230V
Frequency50 - 60Hz
Built-in depth44mm
Rated current3A
Over voltage category-
Width in number of modular spacings1
Current limiting class3
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Pollution degree2
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
Additional equipment possibleYes
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Concurrently switching neutral conductorNo
Number of poles (total)1
Connectable conductor cross section solid-core- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Connectable conductor cross section multi-wired- - -mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

404165 | TX3 AUTOM OSIG 1P C 3A 10KA

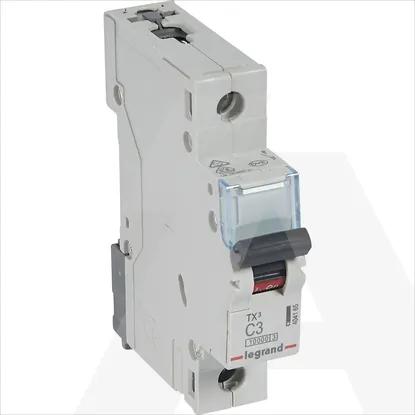

Main Product Image
