Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •10 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Voltage typeAC
Current limiting class3
Rated insulation voltage Ui500V
Rated current10A
Ambient temperature during operating- - -°C
Suitable for flush-mounted installationYes
Width in number of modular spacings1
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Frequency50 - 60Hz
Connectable conductor cross section solid-core- - -mm²
Release characteristicC
Built-in depth44mm
Concurrently switching neutral conductorNo
Number of poles (total)1
Degree of protection (IP)IP20
Over voltage category-
Additional equipment possibleYes
Connectable conductor cross section multi-wired- - -mm²
Pollution degree2
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

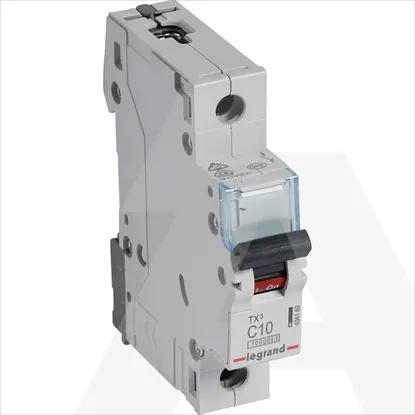

404169 | TX3 AUTOM OSIG 1P C 10A 10KA
