Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •5 KOM
  • •LEGRAND

Technical specifications

Rated insulation voltage Ui500V
Release characteristicC
Rated voltage230V
Rated current25A
Frequency50 - 60Hz
Built-in depth44mm
Voltage typeAC
Current limiting class3
Concurrently switching neutral conductorYes
Connectable conductor cross section multi-wired- - -mm²
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Ambient temperature during operating- - -°C
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Width in number of modular spacings2
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Over voltage category-
Connectable conductor cross section solid-core- - -mm²
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

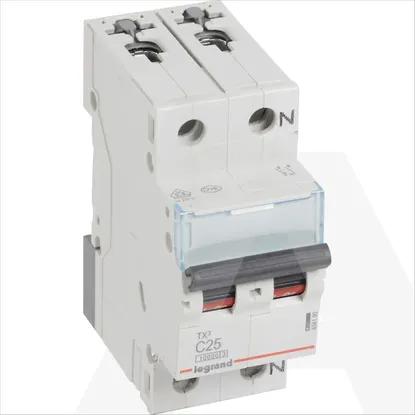

404190 | TX3 AUTOM OSIG 1P+N C25 10KA

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 5 KOM
  • LEGRAND

Technical specifications

Rated insulation voltage Ui

500V

Release characteristic

C

Rated voltage

230V

Rated current

25A

Frequency

50 .. 60Hz

Built-in depth

44mm

Voltage type

AC

Current limiting class

3

Concurrently switching neutral conductor

Connectable conductor cross section multi-wired

- .. -mm²

Suitable for flush-mounted installation

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Ambient temperature during operating

- .. -°C

Number of protected poles

1

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

2

Width in number of modular spacings

2

Pollution degree

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Over voltage category

-

Connectable conductor cross section solid-core

- .. -mm²

Additional equipment possible
