Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •5 KOM
- •LEGRAND
Technical specifications
Rated current40A
Over voltage category-
Degree of protection (IP)IP20
Voltage typeAC
Release characteristicC
Built-in depth44mm
Rated insulation voltage Ui500V
Rated voltage230V
Width in number of modular spacings2
Pollution degree2
Current limiting class3
Number of protected poles1
Connectable conductor cross section multi-wired- - -mm²
Connectable conductor cross section solid-core- - -mm²
Concurrently switching neutral conductorYes
Suitable for flush-mounted installationYes
Frequency50 - 60Hz
Ambient temperature during operating- - -°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

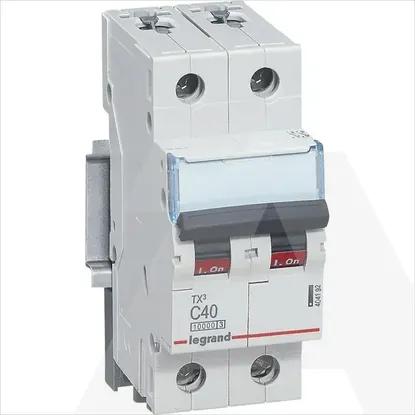

404192 | TX3 AUTOM OSIG 1P+N C40 10KA
