Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •5 KOM
- •LEGRAND
Technical specifications
Suitable for flush-mounted installationYes
Built-in depth44mm
Voltage typeAC
Release characteristicC
Current limiting class3
Width in number of modular spacings2
Pollution degree2
Frequency50 - 60Hz
Over voltage category-
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Rated voltage400V
Number of protected poles2
Rated current10A
Degree of protection (IP)IP20
Connectable conductor cross section solid-core- - -mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Number of poles (total)2
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Connectable conductor cross section multi-wired- - -mm²
Ambient temperature during operating- - -°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

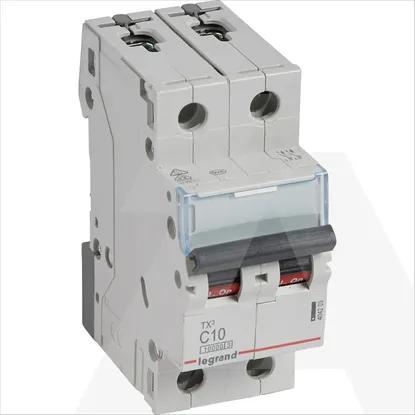

404203 | TX3 AUTOM OSIG 2P C 10A 10KA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 5 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Suitable for flush-mounted installation
Built-in depth
44mm
Voltage type
AC
Release characteristic
C
Current limiting class
3
Width in number of modular spacings
2
Pollution degree
2
Frequency
50 .. 60Hz
Over voltage category
-
Concurrently switching neutral conductor
Rated insulation voltage Ui
500V
Rated voltage
400V
Number of protected poles
2
Rated current
10A
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core
- .. -mm²
Additional equipment possible
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
16kA
Number of poles (total)
2
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
Connectable conductor cross section multi-wired
- .. -mm²
Ambient temperature during operating
- .. -°C
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
