Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •5 KOM
  • •LEGRAND

Technical specifications

Degree of protection (IP)IP20
Voltage typeAC
Suitable for flush-mounted installationYes
Rated current40A
Rated voltage400V
Width in number of modular spacings2
Built-in depth44mm
Ambient temperature during operating- - -°C
Release characteristicC
Connectable conductor cross section multi-wired- - -mm²
Number of protected poles2
Connectable conductor cross section solid-core- - -mm²
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui500V
Current limiting class3
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Additional equipment possibleYes
Pollution degree2
Frequency50 - 60Hz
Over voltage category-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

404209 | TX3 AUTOM OSIG 2P C 40A 10KA

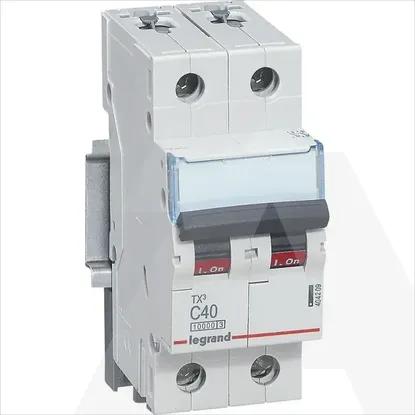

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 5 KOM
  • LEGRAND

Technical specifications

Degree of protection (IP)

IP20

Voltage type

AC

Suitable for flush-mounted installation

Rated current

40A

Rated voltage

400V

Width in number of modular spacings

2

Built-in depth

44mm

Ambient temperature during operating

- .. -°C

Release characteristic

C

Connectable conductor cross section multi-wired

- .. -mm²

Number of protected poles

2

Connectable conductor cross section solid-core

- .. -mm²

Rated impulse withstand voltage Uimp

4kV

Rated insulation voltage Ui

500V

Current limiting class

3

Number of poles (total)

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Additional equipment possible

Pollution degree

2

Frequency

50 .. 60Hz

Over voltage category

-

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Concurrently switching neutral conductor

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA
