Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Width in number of modular spacings3
Pollution degree2
Degree of protection (IP)IP20
Current limiting class3
Number of protected poles3
Release characteristicC
Over voltage category-
Frequency50 - 60Hz
Rated current16A
Rated insulation voltage Ui500V
Rated voltage400V
Built-in depth44mm
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core- - -mm²
Ambient temperature during operating- - -°C
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired- - -mm²
Additional equipment possibleYes
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

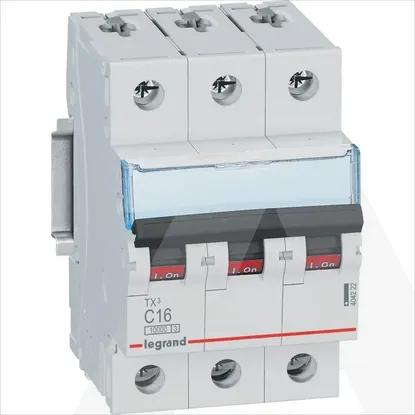

404222 | TX3 AUTOM OSIG 3P C 16A 10KA
