Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Release characteristicC
Rated current25A
Voltage typeAC
Frequency50 - 60Hz
Current limiting class3
Rated voltage400V
Rated insulation voltage Ui500V
Built-in depth44mm
Degree of protection (IP)IP20
Connectable conductor cross section solid-core- - -mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Number of protected poles3
Pollution degree2
Concurrently switching neutral conductorYes
Rated impulse withstand voltage Uimp4kV
Over voltage category-
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired- - -mm²
Number of poles (total)4
Width in number of modular spacings4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Ambient temperature during operating- - -°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

404258 | TX3 AUTOM OSIG 4P C 25A 10KA

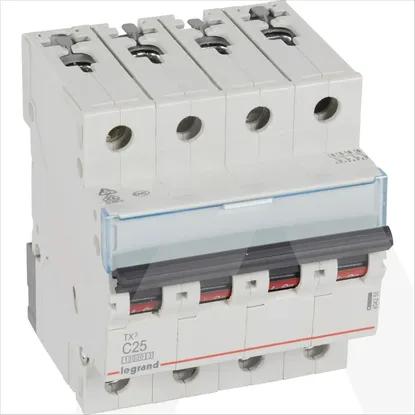

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Release characteristic

C

Rated current

25A

Voltage type

AC

Frequency

50 .. 60Hz

Current limiting class

3

Rated voltage

400V

Rated insulation voltage Ui

500V

Built-in depth

44mm

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

- .. -mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Number of protected poles

3

Pollution degree

2

Concurrently switching neutral conductor

Rated impulse withstand voltage Uimp

4kV

Over voltage category

-

Suitable for flush-mounted installation

Connectable conductor cross section multi-wired

- .. -mm²

Number of poles (total)

4

Width in number of modular spacings

4

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

-kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Ambient temperature during operating

- .. -°C
