Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Current limiting class3
Frequency50 - 60Hz
Rated current10A
Over voltage category-
Release characteristicB
Rated insulation voltage Ui500V
Connectable conductor cross section solid-core1.5 - 35mm²
Built-in depth44mm
Concurrently switching neutral conductorNo
Voltage typeAC
Pollution degree2
Degree of protection (IP)IP20
Rated voltage230V
Number of protected poles1
Suitable for flush-mounted installationYes
Width in number of modular spacings1
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Additional equipment possibleYes
Ambient temperature during operating-25 - 70°C
Number of poles (total)1
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

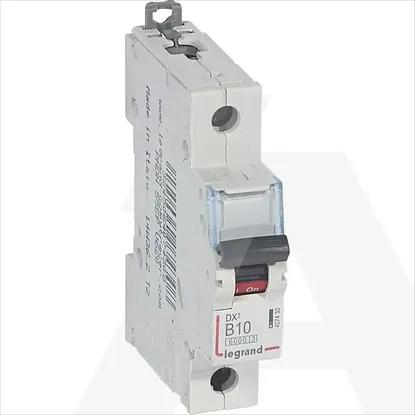

407430 | AUT.OSIG. DX3 1P B10 10KA
