Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Suitable for flush-mounted installationYes
Current limiting class3
Rated current50A
Degree of protection (IP)IP20
Pollution degree2
Rated voltage230V
Connectable conductor cross section solid-core1.5 - 35mm²
Concurrently switching neutral conductorNo
Rated insulation voltage Ui500V
Number of protected poles1
Width in number of modular spacings1
Release characteristicB
Over voltage category-
Frequency50 - 60Hz
Built-in depth44mm
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

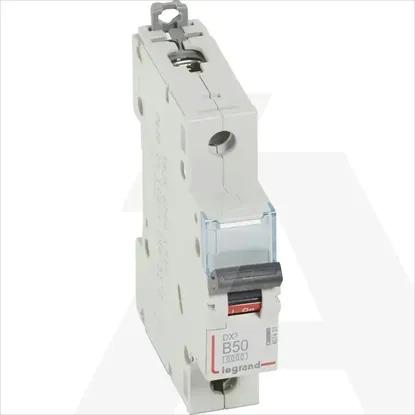

407437 | AUT.OSIG. DX3 1P B50 10KA
