Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Frequency50 - 60Hz
Over voltage category-
Built-in depth44mm
Current limiting class3
Rated current1A
Release characteristicB
Width in number of modular spacings2
Rated voltage400V
Pollution degree2
Rated insulation voltage Ui500V
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section solid-core1.5 - 35mm²
Suitable for flush-mounted installationYes
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Number of protected poles2
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of poles (total)2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

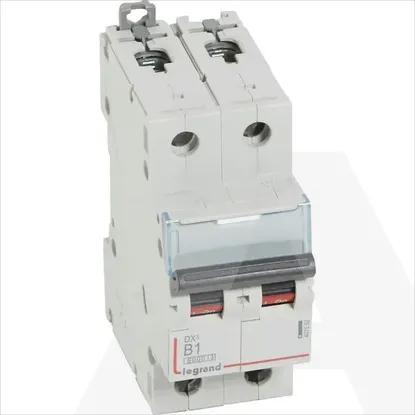

407502 | AUT.OSIG. DX3 2P B1 10KA
