Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Built-in depth44mm
Voltage typeAC
Rated current3A
Rated voltage400V
Release characteristicB
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Over voltage category-
Number of poles (total)4
Pollution degree2
Connectable conductor cross section multi-wired1.5 - 25mm²
Ambient temperature during operating-25 - 70°C
Current limiting class3
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Number of protected poles3
Connectable conductor cross section solid-core1.5 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Concurrently switching neutral conductorYes
Width in number of modular spacings4
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

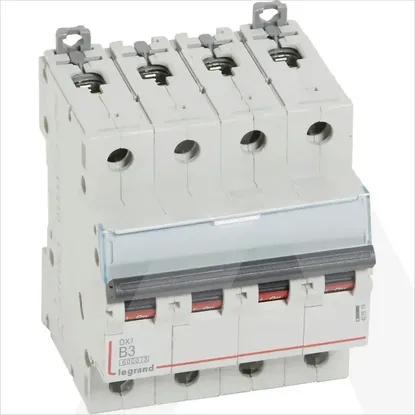

407619 | AUT.OSIG. DX3 4P B3 10KA
