Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •10 KOM
  • •LEGRAND

Technical specifications

Built-in depth44mm
Rated current25A
Rated insulation voltage Ui500V
Voltage typeAC
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Rated voltage230V
Current limiting class3
Release characteristicC
Pollution degree2
Width in number of modular spacings1
Over voltage category-
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section multi-wired1.5 - 25mm²
Number of poles (total)1
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

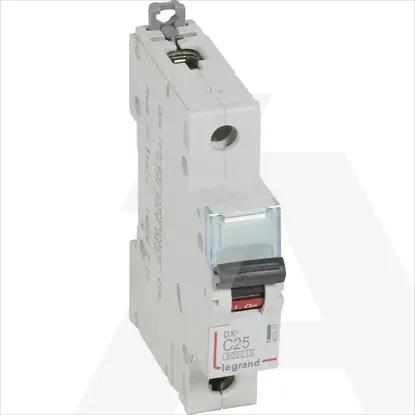

407672 | AUT.OSIG. DX3 1P C25 10KA
