Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated insulation voltage Ui500V
Width in number of modular spacings2
Connectable conductor cross section multi-wired1.5 - 25mm²
Release characteristicC
Connectable conductor cross section solid-core1.5 - 35mm²
Current limiting class3
Pollution degree2
Frequency50 - 60Hz
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IP20
Over voltage category-
Concurrently switching neutral conductorNo
Rated voltage400V
Number of poles (total)2
Additional equipment possibleYes
Rated current2A
Number of protected poles2
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

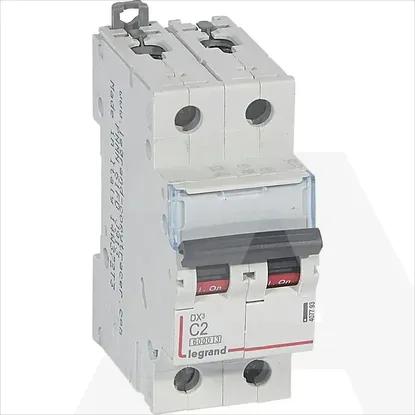

407793 | AUT.OSIG. DX3 2P C2 10KA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Voltage type
AC
Built-in depth
44mm
Rated insulation voltage Ui
500V
Width in number of modular spacings
2
Connectable conductor cross section multi-wired
1.5 .. 25mm²
Release characteristic
C
Connectable conductor cross section solid-core
1.5 .. 35mm²
Current limiting class
3
Pollution degree
2
Frequency
50 .. 60Hz
Ambient temperature during operating
-25 .. 70°C
Degree of protection (IP)
IP20
Over voltage category
-
Concurrently switching neutral conductor
Rated voltage
400V
Number of poles (total)
2
Additional equipment possible
Rated current
2A
Number of protected poles
2
Suitable for flush-mounted installation
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6kA
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
