Details

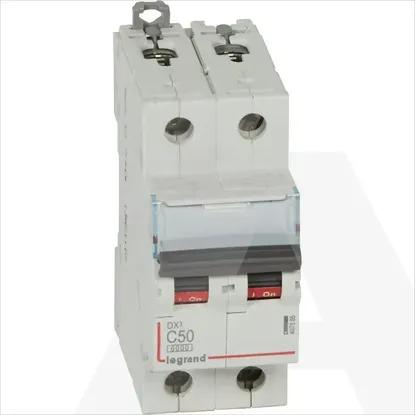

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Built-in depth44mm
Over voltage category-
Pollution degree2
Voltage typeAC
Rated insulation voltage Ui500V
Current limiting class3
Frequency50 - 60Hz
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 35mm²
Connectable conductor cross section multi-wired1.5 - 25mm²
Suitable for flush-mounted installationYes
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 70°C
Concurrently switching neutral conductorNo
Rated voltage400V
Width in number of modular spacings2
Number of protected poles2
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated current50A
Release characteristicC
Number of poles (total)2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
