Details

  • •Circuit breakers and fuses

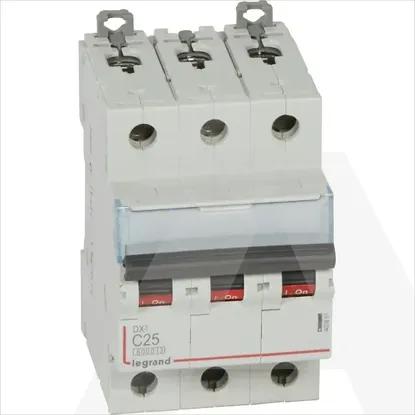

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Frequency50 - 60Hz
Rated insulation voltage Ui500V
Built-in depth44mm
Current limiting class3
Voltage typeAC
Connectable conductor cross section solid-core1.5 - 35mm²
Pollution degree2
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Over voltage category-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated impulse withstand voltage Uimp4kV
Additional equipment possibleYes
Number of protected poles3
Rated voltage400V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Width in number of modular spacings3
Concurrently switching neutral conductorNo
Rated current25A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
