Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Voltage typeAC
Connectable conductor cross section solid-core1.5 - 35mm²
Release characteristicC
Built-in depth44mm
Current limiting class3
Rated insulation voltage Ui500V
Over voltage category-
Pollution degree2
Concurrently switching neutral conductorNo
Rated voltage400V
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Width in number of modular spacings3
Number of poles (total)3
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated current32A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Additional equipment possibleYes
Frequency50 - 60Hz
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1.5 - 25mm²
Number of protected poles3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

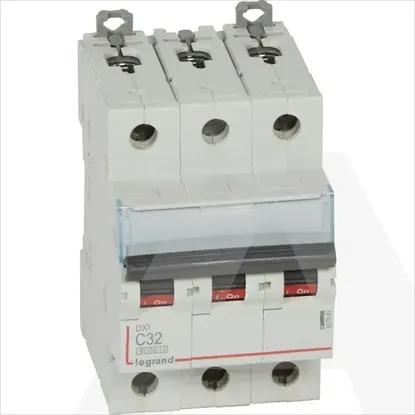

407862 | AUT.OSIG. DX3 3P C32 10KA
