Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Built-in depth44mm
Voltage typeAC
Rated current63A
Current limiting class3
Additional equipment possibleYes
Number of protected poles3
Number of poles (total)3
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core1.5 - 35mm²
Connectable conductor cross section multi-wired1.5 - 25mm²
Over voltage category-
Rated insulation voltage Ui500V
Release characteristicC
Suitable for flush-mounted installationYes
Rated voltage400V
Width in number of modular spacings3
Frequency50 - 60Hz
Pollution degree2
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

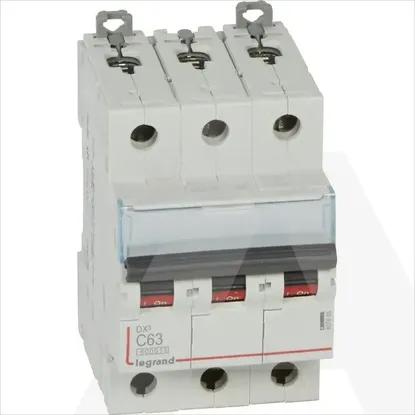

407865 | AUT.OSIG. DX3 3P C63 10KA
