Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated current3A
Built-in depth44mm
Frequency50 - 60Hz
Voltage typeAC
Rated voltage230V
Width in number of modular spacings1
Pollution degree2
Release characteristicD
Rated insulation voltage Ui500V
Current limiting class-
Over voltage category-
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-25 - 70°C
Number of protected poles1
Suitable for flush-mounted installationYes
Number of poles (total)1
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section solid-core1.5 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

407965 | AUT.OSIG. DX3 1P D3 10KA

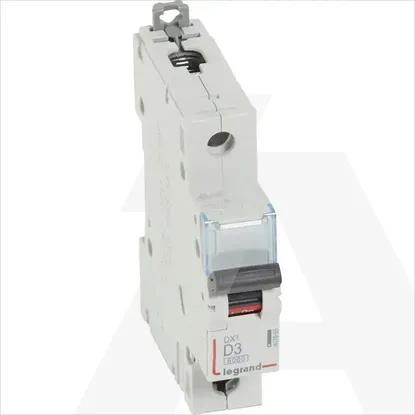

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Rated current

3A

Built-in depth

44mm

Frequency

50 .. 60Hz

Voltage type

AC

Rated voltage

230V

Width in number of modular spacings

1

Pollution degree

2

Release characteristic

D

Rated insulation voltage Ui

500V

Current limiting class

-

Over voltage category

-

Degree of protection (IP)

IP20

Additional equipment possible

Ambient temperature during operating

-25 .. 70°C

Number of protected poles

1

Suitable for flush-mounted installation

Number of poles (total)

1

Concurrently switching neutral conductor

Connectable conductor cross section multi-wired

1.5 .. 25mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Connectable conductor cross section solid-core

1.5 .. 35mm²
