Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Width in number of modular spacings3
Rated voltage400V
Number of protected poles3
Current limiting class-
Built-in depth44mm
Rated current1A
Voltage typeAC
Release characteristicD
Rated insulation voltage Ui500V
Pollution degree2
Degree of protection (IP)IP20
Over voltage category-
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1.5 - 25mm²
Ambient temperature during operating-25 - 70°C
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Number of poles (total)3
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

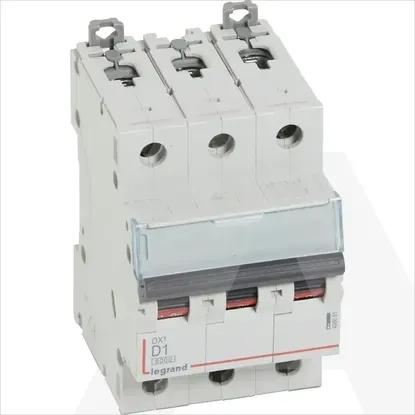

408081 | AUT.OSIG. DX3 3P D1 10KA
