Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Voltage typeAC
Release characteristicC
Built-in depth44mm
Current limiting class-
Rated current100A
Rated voltage400V
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Over voltage category-
Width in number of modular spacings2
Concurrently switching neutral conductorNo
Number of poles (total)2
Pollution degree3
Suitable for flush-mounted installationYes
Number of protected poles2
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired6 - 50mm²
Additional equipment possibleYes
Connectable conductor cross section solid-core6 - 70mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

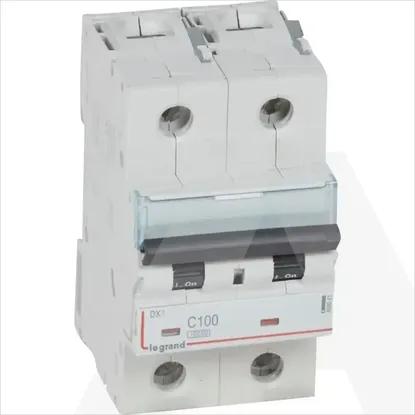

408641 | AUT.OSIG. DX3 2P C100 16KA

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Voltage type

AC

Release characteristic

C

Built-in depth

44mm

Current limiting class

-

Rated current

100A

Rated voltage

400V

Rated insulation voltage Ui

500V

Frequency

50 .. 60Hz

Over voltage category

-

Width in number of modular spacings

2

Concurrently switching neutral conductor

Number of poles (total)

2

Pollution degree

3

Suitable for flush-mounted installation

Number of protected poles

2

Ambient temperature during operating

-25 .. 70°C

Degree of protection (IP)

IP20

Connectable conductor cross section multi-wired

6 .. 50mm²

Additional equipment possible

Connectable conductor cross section solid-core

6 .. 70mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

32kA

Rated impulse withstand voltage Uimp

6kV

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

16kA
