Details

  • •Circuit breakers and fuses

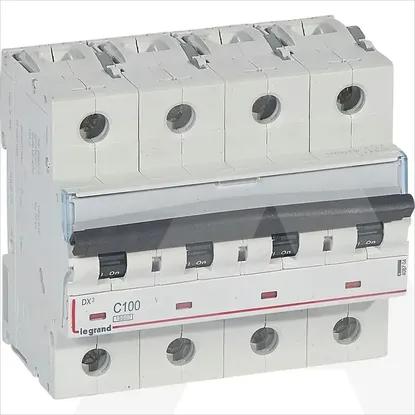

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Additional equipment possibleYes
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired6 - 50mm²
Built-in depth47mm
Current limiting class-
Connectable conductor cross section solid-core6 - 70mm²
Number of protected poles3
Concurrently switching neutral conductorYes
Pollution degree3
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Voltage typeAC
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Over voltage category-
Rated voltage400V
Width in number of modular spacings6
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16kA
Rated current100A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
