Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Voltage typeAC
Built-in depth44mm
Suitable for flush-mounted installationYes
Width in number of modular spacings2
Rated current1A
Rated voltage400V
Release characteristicB
Ambient temperature during operating-25 - 70°C
Number of protected poles2
Connectable conductor cross section multi-wired1.5 - 25mm²
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
Number of poles (total)2
Over voltage category-
Rated insulation voltage Ui500V
Current limiting class3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32kA
Additional equipment possibleYes
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16kA
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

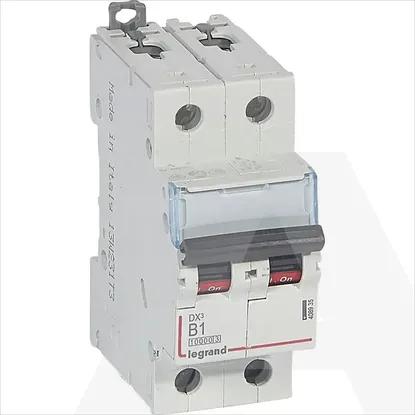

408935 | AUT.OSIG. DX3 2P B1 16KA
