Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated insulation voltage Ui500V
Current limiting class3
Over voltage category-
Rated voltage400V
Rated current6A
Frequency50 - 60Hz
Release characteristicB
Voltage typeAC
Built-in depth44mm
Pollution degree2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Concurrently switching neutral conductorYes
Ambient temperature during operating-25 - 70°C
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32kA
Suitable for flush-mounted installationYes
Number of protected poles3
Connectable conductor cross section solid-core1.5 - 35mm²
Number of poles (total)4
Width in number of modular spacings4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

409062 | AUT.OSIG. DX3 4P B6 16KA

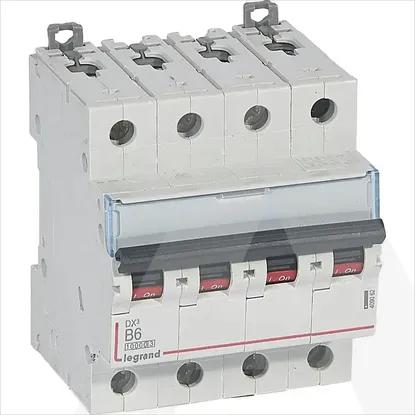

Main Product Image
