Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Voltage typeAC
Rated insulation voltage Ui500V
Over voltage category-
Release characteristicC
Frequency50 - 60Hz
Current limiting class3
Rated current50A
Rated voltage400V
Built-in depth44mm
Pollution degree2
Suitable for flush-mounted installationYes
Width in number of modular spacings2
Number of poles (total)2
Concurrently switching neutral conductorNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Number of protected poles2
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32kA
Ambient temperature during operating-25 - 70°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core1.5 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

409207 | AUT.OSIG. DX3 2P C50 16KA

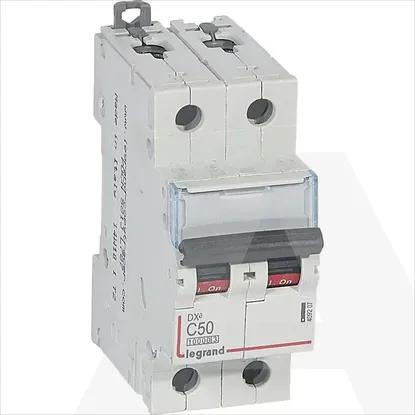

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Voltage type

AC

Rated insulation voltage Ui

500V

Over voltage category

-

Release characteristic

C

Frequency

50 .. 60Hz

Current limiting class

3

Rated current

50A

Rated voltage

400V

Built-in depth

44mm

Pollution degree

2

Suitable for flush-mounted installation

Width in number of modular spacings

2

Number of poles (total)

2

Concurrently switching neutral conductor

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Number of protected poles

2

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

32kA

Ambient temperature during operating

-25 .. 70°C

Additional equipment possible

Rated impulse withstand voltage Uimp

4kV

Connectable conductor cross section solid-core

1.5 .. 35mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Connectable conductor cross section multi-wired

1.5 .. 25mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

16kA
