Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated voltage400V
Voltage typeAC
Rated current50A
Built-in depth44mm
Release characteristicD
Frequency50 - 60Hz
Rated insulation voltage Ui500V
Degree of protection (IP)IP20
Number of protected poles2
Additional equipment possibleYes
Pollution degree2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V16kA
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
Width in number of modular spacings2
Suitable for flush-mounted installationYes
Over voltage category-
Number of poles (total)2
Concurrently switching neutral conductorNo
Current limiting class-
Connectable conductor cross section solid-core1.5 - 35mm²
Connectable conductor cross section multi-wired1.5 - 25mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V32kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V16kA
Rated impulse withstand voltage Uimp4kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

409456 | DX3 AUTOM OSIG 2P D50 16KA

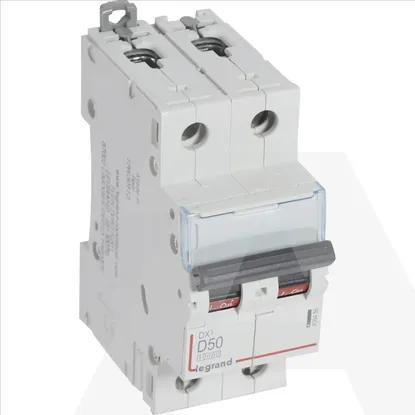

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Rated voltage

400V

Voltage type

AC

Rated current

50A

Built-in depth

44mm

Release characteristic

D

Frequency

50 .. 60Hz

Rated insulation voltage Ui

500V

Degree of protection (IP)

IP20

Number of protected poles

2

Additional equipment possible

Pollution degree

2

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

16kA

Ambient temperature during operating

-25 .. 70°C

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA

Width in number of modular spacings

2

Suitable for flush-mounted installation

Over voltage category

-

Number of poles (total)

2

Concurrently switching neutral conductor

Current limiting class

-

Connectable conductor cross section solid-core

1.5 .. 35mm²

Connectable conductor cross section multi-wired

1.5 .. 25mm²

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

32kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

16kA

Rated impulse withstand voltage Uimp

4kV
