Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Release characteristicC
Voltage typeDC
Built-in depth44mm
Width in number of modular spacings2
Rated voltage230V
Pollution degree3
Current limiting class-
Frequency- - -Hz
Rated current1.6A
Over voltage category-
Concurrently switching neutral conductorNo
Number of protected poles2
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Number of poles (total)2
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V16kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Ambient temperature during operating-25 - 70°C
Connectable conductor cross section multi-wired1.5 - 25mm²
Additional equipment possibleYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Connectable conductor cross section solid-core1.5 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

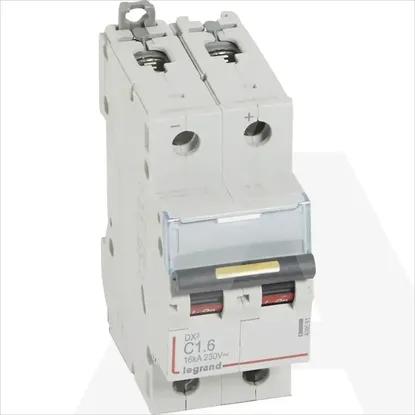

409561 | DX3 AUTOM OSIG DC 2P C1.6 16KA
