Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated current2A
Frequency- - -Hz
Rated insulation voltage Ui500V
Current limiting class-
Rated voltage230V
Built-in depth44mm
Release characteristicC
Voltage typeDC
Ambient temperature during operating-25 - 70°C
Number of poles (total)2
Concurrently switching neutral conductorNo
Additional equipment possibleYes
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10kA
Connectable conductor cross section multi-wired1.5 - 25mm²
Number of protected poles2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V16kA
Connectable conductor cross section solid-core1.5 - 35mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Width in number of modular spacings2
Rated impulse withstand voltage Uimp4kV
Suitable for flush-mounted installationYes
Over voltage category-
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

409562 | DX3 AUTOM OSIG DC 2P C2 16KA

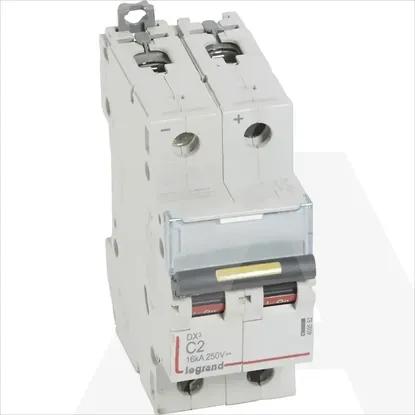

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Rated current

2A

Frequency

- .. -Hz

Rated insulation voltage Ui

500V

Current limiting class

-

Rated voltage

230V

Built-in depth

44mm

Release characteristic

C

Voltage type

DC

Ambient temperature during operating

-25 .. 70°C

Number of poles (total)

2

Concurrently switching neutral conductor

Additional equipment possible

Pollution degree

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Connectable conductor cross section multi-wired

1.5 .. 25mm²

Number of protected poles

2

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

16kA

Connectable conductor cross section solid-core

1.5 .. 35mm²

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Degree of protection (IP)

IP20

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Width in number of modular spacings

2

Rated impulse withstand voltage Uimp

4kV

Suitable for flush-mounted installation

Over voltage category

-
