Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Voltage typeAC
Frequency50 - 60Hz
Built-in depth44mm
Rated current16A
Over voltage category-
Current limiting class-
Rated insulation voltage Ui500V
Width in number of modular spacings1
Pollution degree3
Release characteristicC
Connectable conductor cross section solid-core1.5 - 35mm²
Degree of protection (IP)IP20
Concurrently switching neutral conductorNo
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired1.5 - 25mm²
Ambient temperature during operating-25 - 70°C
Number of protected poles1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Number of poles (total)1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

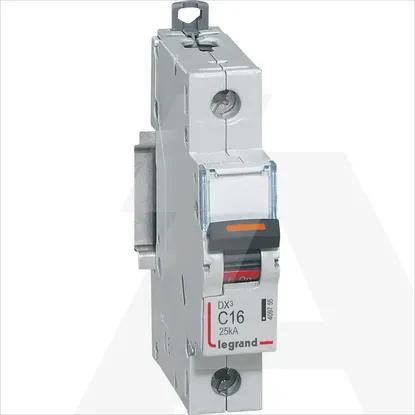

409755 | AUT.OSIG. DX3 1P C16 25KA
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated voltage
230V
Voltage type
AC
Frequency
50 .. 60Hz
Built-in depth
44mm
Rated current
16A
Over voltage category
-
Current limiting class
-
Rated insulation voltage Ui
500V
Width in number of modular spacings
1
Pollution degree
3
Release characteristic
C
Connectable conductor cross section solid-core
1.5 .. 35mm²
Degree of protection (IP)
IP20
Concurrently switching neutral conductor
Suitable for flush-mounted installation
Connectable conductor cross section multi-wired
1.5 .. 25mm²
Ambient temperature during operating
-25 .. 70°C
Number of protected poles
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
-kA
Additional equipment possible
Rated impulse withstand voltage Uimp
4kV
Number of poles (total)
1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
-kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
