Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Pollution degree3
Connectable conductor cross section solid-core1.5 - 50mm²
Release characteristicC
Built-in depth47mm
Rated current40A
Degree of protection (IP)IP20
Concurrently switching neutral conductorYes
Frequency50 - 60Hz
Number of protected poles3
Rated insulation voltage Ui500V
Current limiting class-
Over voltage category-
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Suitable for flush-mounted installationYes
Number of poles (total)4
Rated voltage400V
Connectable conductor cross section multi-wired1.5 - 35mm²
Additional equipment possibleYes
Voltage typeAC
Width in number of modular spacings6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

409798 | AUT.OSIG. DX3 4P C40 25KA

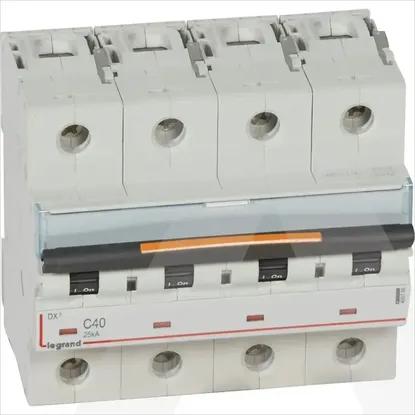

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Pollution degree

3

Connectable conductor cross section solid-core

1.5 .. 50mm²

Release characteristic

C

Built-in depth

47mm

Rated current

40A

Degree of protection (IP)

IP20

Concurrently switching neutral conductor

Frequency

50 .. 60Hz

Number of protected poles

3

Rated insulation voltage Ui

500V

Current limiting class

-

Over voltage category

-

Ambient temperature during operating

-25 .. 70°C

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Suitable for flush-mounted installation

Number of poles (total)

4

Rated voltage

400V

Connectable conductor cross section multi-wired

1.5 .. 35mm²

Additional equipment possible

Voltage type

AC

Width in number of modular spacings

6

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

25kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated impulse withstand voltage Uimp

6kV
