Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Degree of protection (IP)IP20
Number of protected poles1
Pollution degree3
Current limiting class-
Built-in depth47mm
Over voltage category-
Connectable conductor cross section solid-core1.5 - 50mm²
Suitable for flush-mounted installationYes
Release characteristicD
Concurrently switching neutral conductorNo
Frequency50 - 60Hz
Width in number of modular spacings1.5
Rated voltage230V
Rated current16A
Rated insulation voltage Ui500V
Connectable conductor cross section multi-wired1.5 - 35mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating-25 - 70°C
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Number of poles (total)1
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

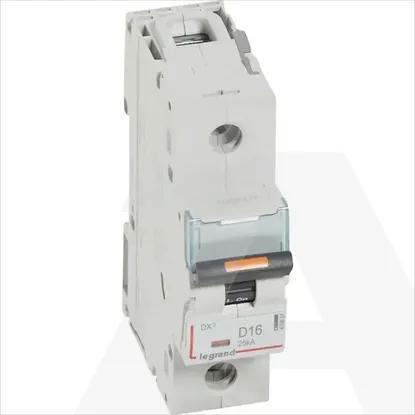

409807 | AUT.OSIG. DX3 1P D16 25KA
