Details

  • •Circuit breakers and fuses

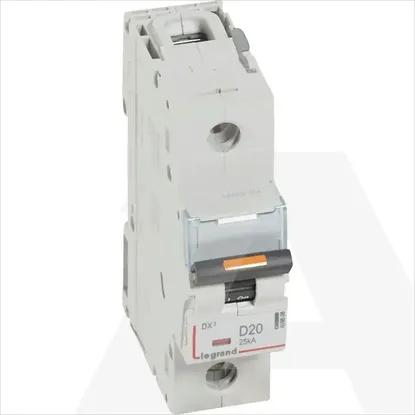

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Built-in depth47mm
Voltage typeAC
Frequency50 - 60Hz
Rated voltage230V
Rated insulation voltage Ui500V
Current limiting class-
Over voltage category-
Pollution degree3
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core1.5 - 50mm²
Width in number of modular spacings1.5
Concurrently switching neutral conductorNo
Number of protected poles1
Additional equipment possibleYes
Connectable conductor cross section multi-wired1.5 - 35mm²
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
Rated impulse withstand voltage Uimp6kV
Rated current20A
Release characteristicD
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
