Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Voltage typeAC
Rated current25A
Built-in depth47mm
Rated voltage230V
Current limiting class-
Ambient temperature during operating-25 - 70°C
Rated insulation voltage Ui500V
Width in number of modular spacings1.5
Release characteristicD
Number of poles (total)1
Frequency50 - 60Hz
Degree of protection (IP)IP20
Additional equipment possibleYes
Connectable conductor cross section solid-core1.5 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Pollution degree3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Suitable for flush-mounted installationYes
Over voltage category-
Connectable conductor cross section multi-wired1.5 - 35mm²
Concurrently switching neutral conductorNo
Number of protected poles1
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

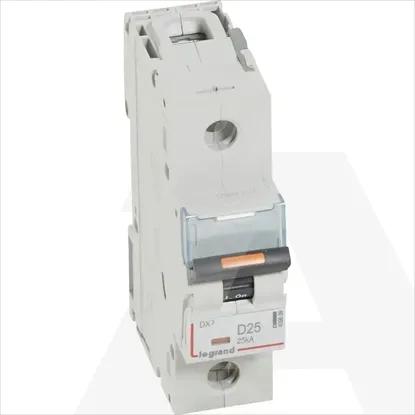

409809 | AUT.OSIG. DX3 1P D25 25KA
