Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated insulation voltage Ui500V
Voltage typeAC
Current limiting class-
Connectable conductor cross section solid-core1.5 - 50mm²
Concurrently switching neutral conductorYes
Additional equipment possibleYes
Frequency50 - 60Hz
Number of poles (total)4
Suitable for flush-mounted installationYes
Width in number of modular spacings6
Rated voltage400V
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Degree of protection (IP)IP20
Over voltage category-
Built-in depth47mm
Pollution degree3
Rated current25A
Connectable conductor cross section multi-wired1.5 - 35mm²
Release characteristicD
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

409848 | AUT.OSIG. DX3 4P D25 25KA

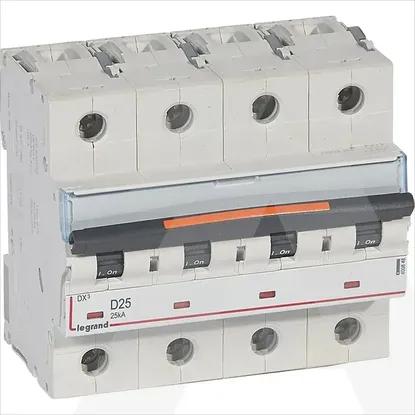

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • LEGRAND

Technical specifications

Rated insulation voltage Ui

500V

Voltage type

AC

Current limiting class

-

Connectable conductor cross section solid-core

1.5 .. 50mm²

Concurrently switching neutral conductor

Additional equipment possible

Frequency

50 .. 60Hz

Number of poles (total)

4

Suitable for flush-mounted installation

Width in number of modular spacings

6

Rated voltage

400V

Ambient temperature during operating

-25 .. 70°C

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

-kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50kA

Degree of protection (IP)

IP20

Over voltage category

-

Built-in depth

47mm

Pollution degree

3

Rated current

25A

Connectable conductor cross section multi-wired

1.5 .. 35mm²

Release characteristic

D

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

-kA

Number of protected poles

3

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

25kA

Rated impulse withstand voltage Uimp

6kV

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
