Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP20
Built-in depth47mm
Current limiting class-
Release characteristicD
Over voltage category-
Rated current40A
Frequency50 - 60Hz
Number of protected poles3
Voltage typeAC
Rated insulation voltage Ui500V
Rated voltage400V
Width in number of modular spacings6
Pollution degree3
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Suitable for flush-mounted installationYes
Connectable conductor cross section multi-wired1.5 - 35mm²
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section solid-core1.5 - 50mm²
Additional equipment possibleYes
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Concurrently switching neutral conductorYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V25kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

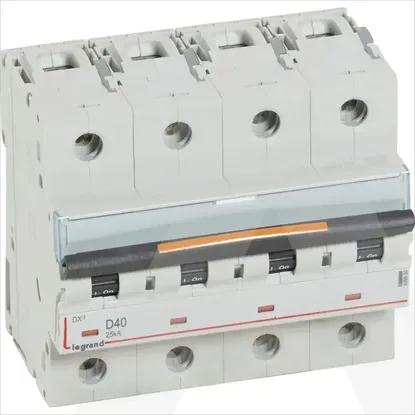

409850 | AUT.OSIG. DX3 4P D40 25KA
