Details

  • •Circuit breakers and fuses

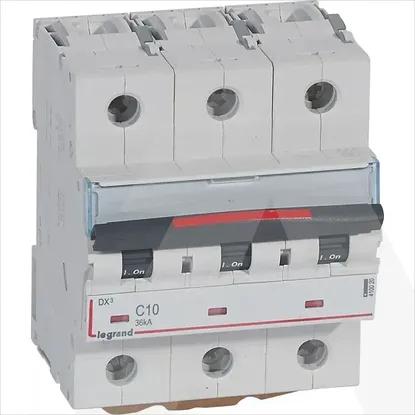

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Current limiting class-
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Over voltage category-
Rated insulation voltage Ui500V
Rated voltage400V
Number of protected poles3
Width in number of modular spacings4.5
Frequency50 - 60Hz
Voltage typeAC
Built-in depth47mm
Pollution degree3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V72kA
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core1.5 - 50mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired1.5 - 35mm²
Rated current16A
Release characteristicC
Number of poles (total)3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
