Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Rated insulation voltage Ui500V
Voltage typeAC
Built-in depth47mm
Release characteristicC
Rated current50A
Current limiting class-
Frequency50 - 60Hz
Rated voltage400V
Over voltage category-
Pollution degree3
Additional equipment possibleYes
Concurrently switching neutral conductorNo
Number of protected poles3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V72kA
Degree of protection (IP)IP20
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Width in number of modular spacings4.5
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Number of poles (total)3
Ambient temperature during operating-25 - 70°C
Rated impulse withstand voltage Uimp6kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
Connectable conductor cross section solid-core1.5 - 50mm²
Connectable conductor cross section multi-wired1.5 - 35mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

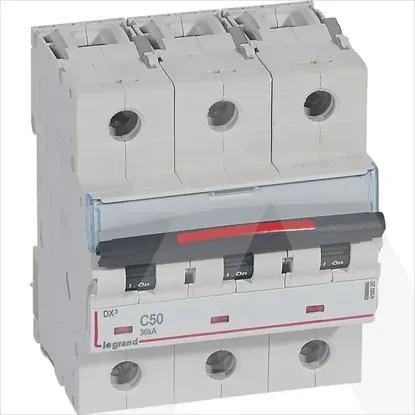

410026 | DX3 AUTOM OSIG 3P C50 36KA
