  • •Circuit breakers and fuses

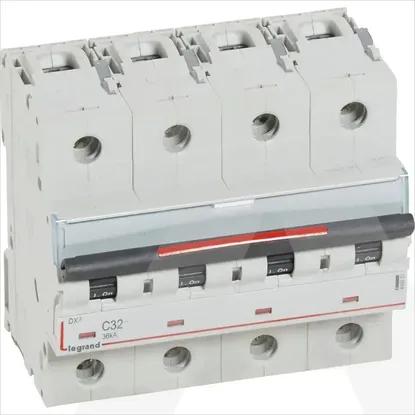

  • •Miniature circuit breaker (MCB)
  • •Minimum order quantity: 1 pcs
  • •LEGRAND

Technical specifications

Built-in depth47mm
Voltage typeAC
Rated voltage400V
Rated insulation voltage Ui500V
Frequency50 - 60Hz
Over voltage category-
Current limiting class-
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1.5 - 50mm²
Connectable conductor cross section multi-wired1.5 - 35mm²
Pollution degree3
Additional equipment possibleYes
Concurrently switching neutral conductorYes
Width in number of modular spacings6
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V72kA
Number of protected poles3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating-25 - 70°C
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V36kA
Rated impulse withstand voltage Uimp6kV
Rated current32A
Release characteristicC
Number of poles (total)4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
