Details

  • •Circuit breakers and fuses

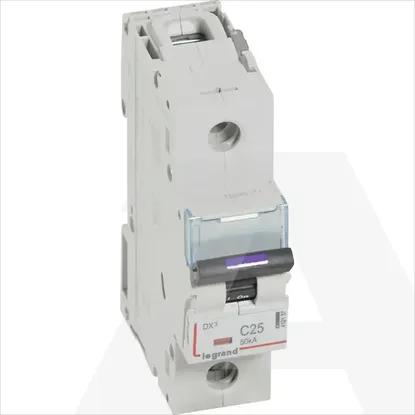

  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •LEGRAND

Technical specifications

Voltage typeAC
Rated voltage230V
Rated insulation voltage Ui500V
Width in number of modular spacings1.5
Current limiting class-
Over voltage category-
Built-in depth47mm
Pollution degree3
Frequency50 - 60Hz
Concurrently switching neutral conductorNo
Degree of protection (IP)IP20
Number of protected poles1
Connectable conductor cross section multi-wired1.5 - 35mm²
Suitable for flush-mounted installationYes
Connectable conductor cross section solid-core1.5 - 50mm²
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V-kA
Ambient temperature during operating-25 - 70°C
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V50kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V-kA
Rated current25A
Release characteristicC
Number of poles (total)1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V-kA
